TV-D101B+TV-LS101G

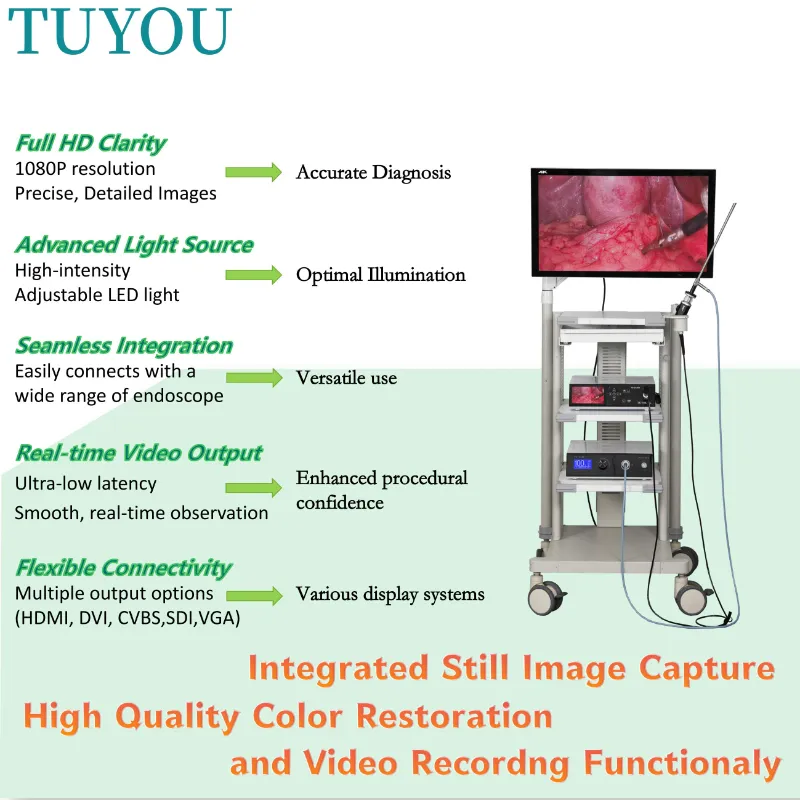

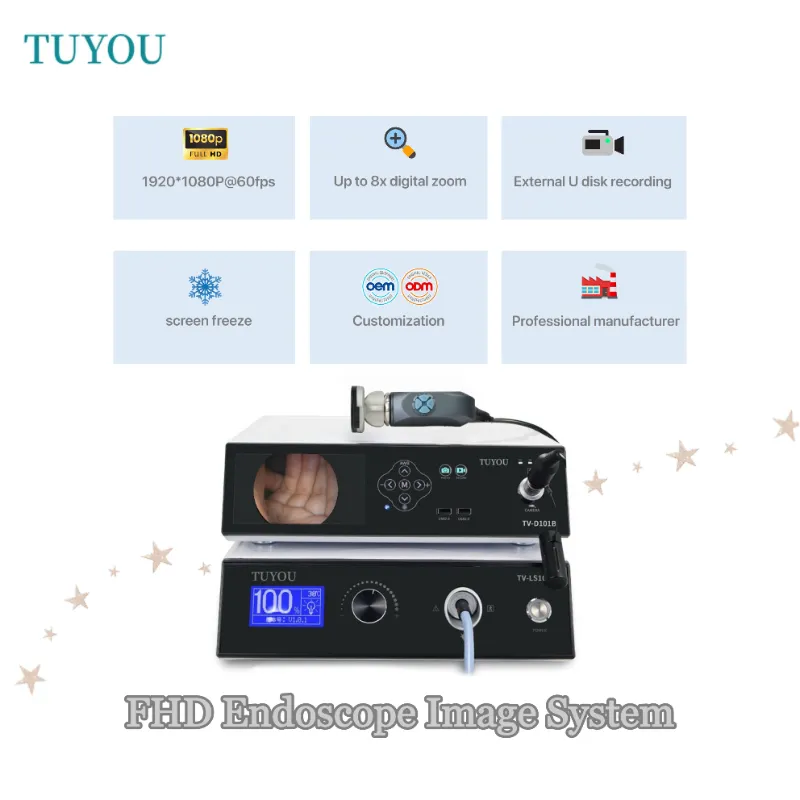

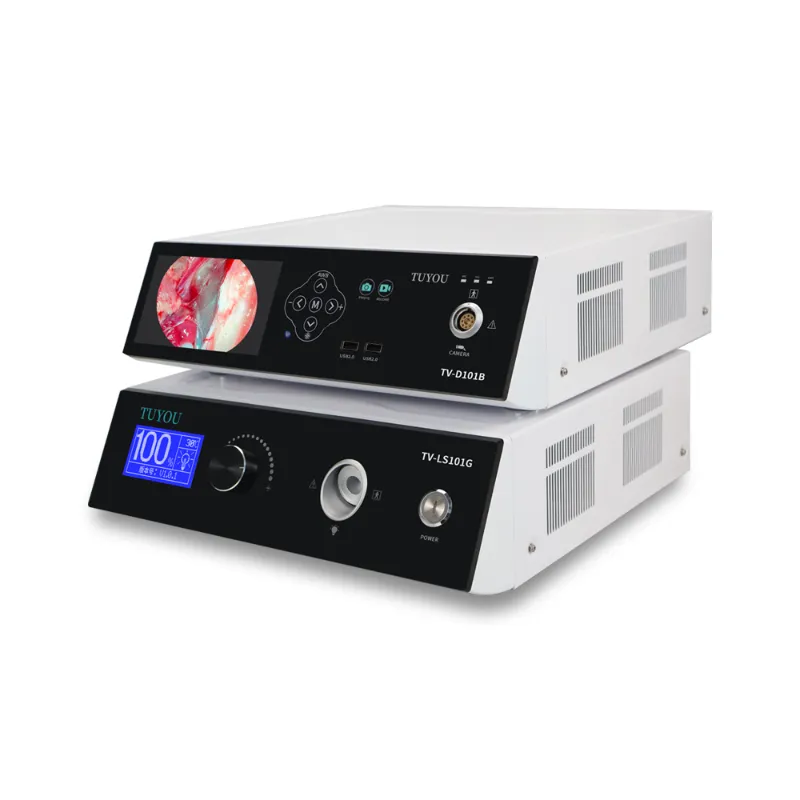

The TV-D101B 1080P 6.5-inch Button-Control Endoscope Camera System, paired with the TV-LS101G Button-Control Cold Light Source, offers a dependable, high-definition imaging solution designed for a wide range of clinical applications. Featuring a native 1920×1080 Full HD image sensor, integrated 100W LED cold light source, and a 6.5-inch LCD preview display, this system provides real-time surgical imaging with exceptional clarity and precision.

Whatsapp:

+86 186 8212 0196

Email:

Krik@tuyoumedical.com

Inquiry Now

Product Description

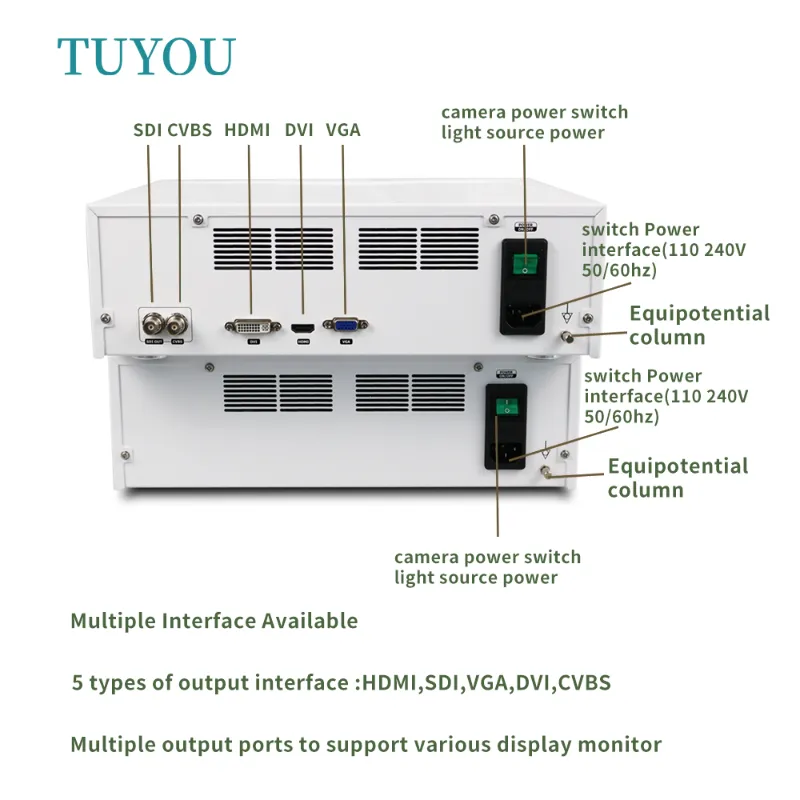

The TV-D101B supports both image and video recording to USB storage and offers multiple output interfaces including HDMI, DVI, SDI, CVBS, and VGA for compatibility with various display systems. Its durable button-control interface provides enhanced reliability in busy clinical environments, making it especially suitable for surgical, outpatient, and educational settings.

Compatible with both rigid and flexible endoscopes, the TV-D101B delivers advanced image processing features such as sharpness, gamma, white balance, and color matrix adjustments. Coupled with the TV-LS101G cold light source, which offers user-friendly brightness control and efficient heat dissipation, the system ensures consistent illumination and outstanding performance across a wide range of medical procedures.

Technical Specifications

Endoscope Camera System – TV-D101B

Product Name	TV-D101B 1080P 6.5-inch Button-Control Endoscope Camera System
Resolution	Native 1920×1080 (Full HD), supports downscaling to 720P
Display	6.5" LCD (real-time preview display)
Control Mode	Press button button control (non-touchscreen) for high reliability
Output Interfaces	HDMI / DVI / SDI / CVBS / VGA (simultaneous output supported)
Scope Compatibility	Compatible with rigid and flexible endoscopes (Olympus, Karl Storz, Stryker, and more.)
Recording	Supports photo and video capture to USB (up to 128GB, FAT32 format)
Image Settings	White balance, sharpness, gamma, color matrix adjustments
Language Support	Multi-language support (English, Chinese, Spanish, French, German, Russian, and more.)
User Customization	Shortcut keys, digital zoom, image freeze, One-touch white balance
Power Supply	AC_100_-240_V,50/60Hz Or 12VDC, auto-switching with surge protection
Certifications	CE, FDA, ISO13485

Cold Light Source – TV-LS101G

Item	Specification
Product Name	TV-LS101G Button-Control LED Cold Light Source
Light Source	100W LED medical-grade cold light source
Brightness	Adjustable intensity for consistent and controlled illumination
Control Mode	Button control for intuitive brightness adjustment
Cooling System	Integrated active cooling system for thermal stability
Compatibility	Universal port (compatible with Olympus / Storz / ACMI / Wolf)
Power Supply	AC 100–240V, 50/60Hz
Certifications	CE, FDA, ISO13485

Application Description

Suitable to use at Operating Theaters, ENT & Outpatient Clinics, Mobile Surgical Units & EMS, and Teaching Hospitals & Medical Schools.

Operating Theaters:
Full HD imaging provides sufficient detail for routine minimally invasive surgeries such as laparoscopy, hysteroscopy, arthroscopy, and urology, supporting accurate intraoperative visualization and recording.
ENT & Outpatient Clinics:
High-definition endoscopic images assist in real-time examination of nasal passages, vocal cords, ear canals, and throat structures, improving diagnostic confidence in outpatient and ambulatory care settings.
Mobile Surgical Units & EMS:
All-in-one design with built-in light source and display reduces setup complexity, making it ideal for field hospitals, rural outreach programs, and emergency medical services requiring compact and reliable imaging tools.
Teaching Hospitals & Medical Schools:
HDMI and DVI outputs allow high-definition projection onto monitors or projectors for live surgical observation, instructional demonstrations, or post-procedure video review and teaching archives.

Factory Description

Shenzhen Tuyou Medical Imaging Co., Ltd. is a national high-tech manufacturer dedicated to professional-grade endoscopic imaging systems. With over two decades of R&D and production experience, our 1,200 m² facility is equipped with advanced inspection tools including thermal testing chambers and precision welding machines. We are certified with CE, FDA, and ISO13485, and hold 15+ national patents for medical imaging innovations. Each product undergoes rigorous visual and functional testing to meet strict medical-grade standards.

Shipping & Packaging

Packaging: Shock-resistant, anti-static ESD industrial cartons ensure product integrity during transit.

Labeling: Each unit is labeled with international shipping standards (fragile, moisture-proof, CE marking).

Customization: OEM/ODM logo, packaging, and label customization options are available.

Inspection Reports: Units include full inspection documentation, CE/FCC certificates, and user manuals.

Why Choose Us?

Clinical Precision: Our designs reflect real clinical needs, incorporating user-preferred button controls and ergonomic interfaces.

Certified & Compliant: CE, FDA, and ISO13485 certifications come pre-loaded, simplifying approval processes and shortening lead times.

Affordable Trials: Clinical trial orders start from just 1 unit, allowing low-cost testing and evaluation.

24/7 Technical Support: Remote diagnostics and rapid service resolution in under 2 hours via our global support network.

Flexible Manufacturing: Scalable production to meet the demands of small clinics, mobile services, and teaching hospitals.

FAQ

Q: Is the system compatible with third-party endoscopes?
A: Yes. The TV-D101B supports both rigid and flexible endoscopes from major brands including Olympus, Karl Storz, and Stryker.

Q: Is brightness adjustable on the light source?
A: Absolutely. The TV-LS101G offers manual button-controlled brightness adjustment for precise lighting.

Q: Can I save video and images to USB?
A: Yes, Full HD video and image capture is supported via USB storage (FAT32 format, up to 128GB).

Q: Can I customize the UI, logo, and language?
A: Yes. We support full OEM/ODM customization including language packs, boot logos, and shortcut key functions.

Q: What’s the minimum order quantity?
A: Only 1 set is required for clinical trials. Standard delivery time is 7–15 working days depending on stock and customization.
